Specifications

2 pressure sensors (low/high pressure) - Addition of 1 point of low pressure control switch (using defrost cycle, loading/unloading compressor capacity control) - Low pressure 2 points, high pressure 1 point - Built-in low pressure ON/OFF high pressure OFF delay timer - Set pressure value can be input in units of 0.1 kgf/cm2 - Pressure unit (kgf/㎠, Mpa, Bar, Psi) Optional when ordering

Power Supply 100-240V~±10%, 50-60hz(24VDC Order Specification) Current Consumption 200mA
Display 3 Digit FND x 2 for HP & LP Pressure Range -1.0 ~ 50, 30, 20, 10 Kgf/㎠ (Both Low & High)
Output Contact(s) SPDT 250V/ 3A Operating Temperature -20~60℃ RH 60%
Sensor Precision 0.5% Communication application (Option) 100-240V~ 10% 50-60hz, 24VDC order specification, current consumption 200mA display 0.36
Current output application (Option) 4-20mA Refrigerant Gas Selection Refrigerants other than (R22, 23, 134, 410, 404, 407, 507 refrigerant temperature conversion function applied) can be ordered.

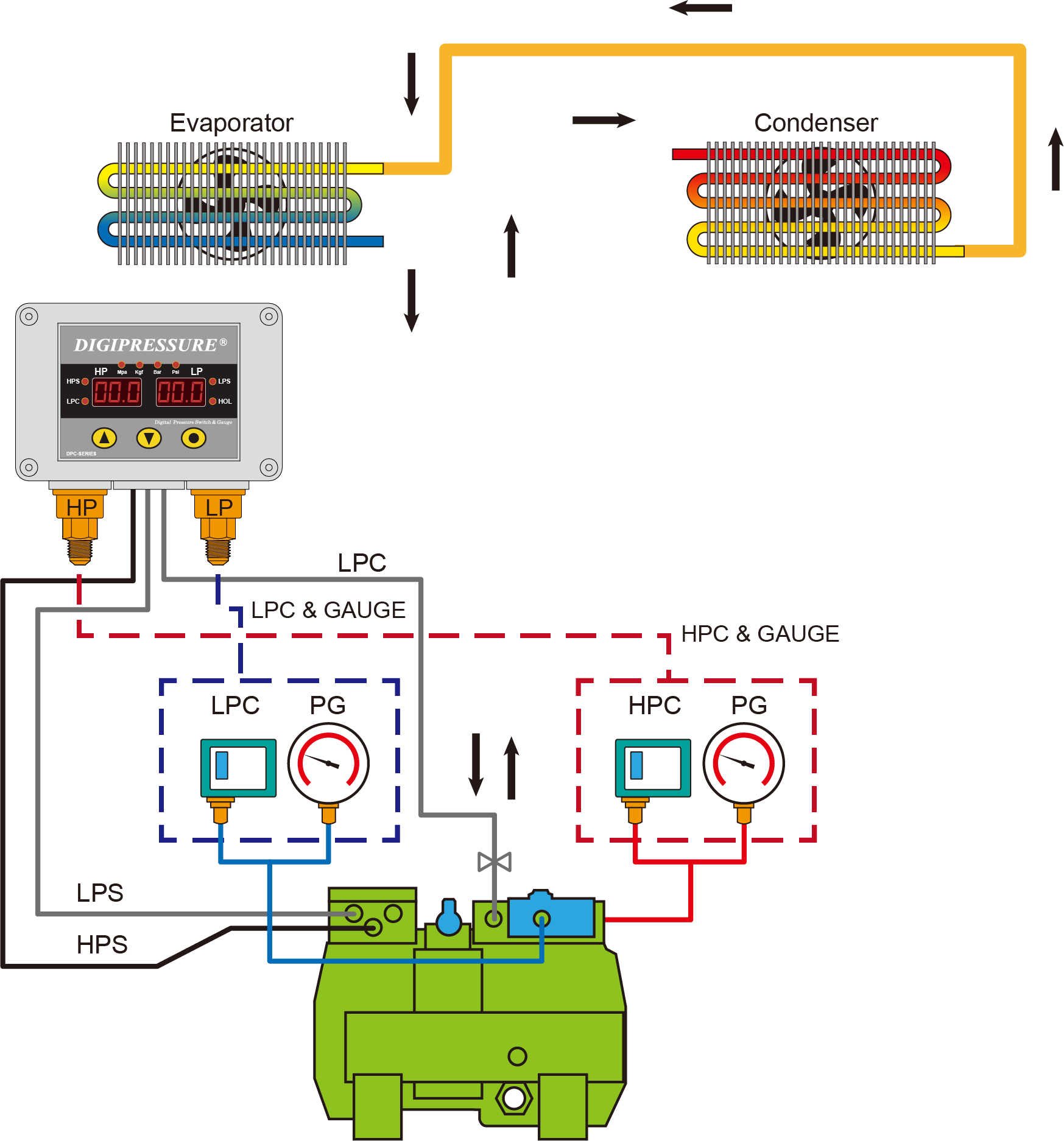

Application Diagram




Installation Type Diagram
